Power Door Opener - Light Commercial - Open Sesame

Description

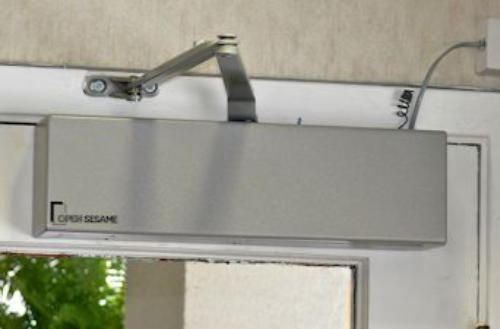

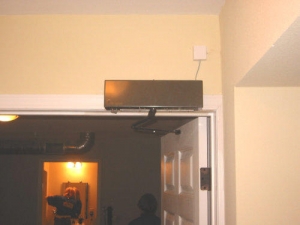

Can be used in light commercial applications, such as school doors, restroom doors, apartment lobby doors, storefronts, elevators/lifts, or residential or pedestrian gates. When triggered via our remote controls they go through an open-pause-close cycle. The operator will close automatically against manual opening of the door, like a standard door closer. NOTE: Any existing door closer must be removed or disabled. Includes Model 233 operator, two rugged wireless wall pushpads or two 36” high wireless wall switches in deluxe package, and wiring kit with transformer. Does not include an electric strike, which can be added if necessary, as well as a wireless keyless entry pad to provide entry through a secure door without using a key.

1) The Open Sesame Model 233 runs on an internal battery that is being constantly trickle charged. For high traffic applications, consult with us regarding an external power supply that reduces dependence on the internal battery.

2) The Open Sesame Model 233 is provided with a bumper-stop on the arm to limit the maximum travel of the door to slightly more than 90 degrees.

3) The Open Sesame Model 233 when held open by wind or obstructions will attempt to close for 40 seconds and then stop trying to bring the door closed. The door operation is reset by manually closing the door. This turn off mode protects the motor and drive circuitry from overheating.

4) The current Model 233 operator comes with an adjustable clutch, which can easily be adjusted to suit the needs of the application. Occasionally, there can be issues due to wind load (for an outward opening door), pressure differential, or excessive opening/closing resistance due to the threshold and/or weatherstripping. In these cases the clutch can be adjusted to provide greater opening/closing and holding force.
